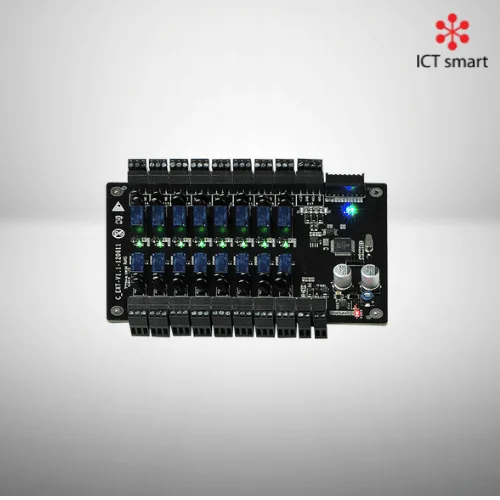

ZKTeco EC10 & EX16
Door Control Accessories
LINE Official Account
@ictsmart
Elevator access control system designed to restrict floor-level access rights. Users must scan fingerprints or tap cards before calling the elevator, enhancing security and enabling efficient user management.
Features
- Control and expand number of floors: The main control panel (EC10) controls elevators up to 10 floors. Can connect expansion boards (EX16) up to a maximum of 3 boards to control up to 58 floors
- Support high user data: EC10 board supports users (fingerprint) up to 3,000 users, and cards (RFID) up to 30,000 cards with the ability to store 100,000 event records
- Smart permission management: Assign permissions to each user to use only authorized floors, or set Time Zone to define time periods (such as allow only during business hours, or allow freely in Passage mode)
- High security (Fail-safe mode): When the system malfunctions or power is lost, the elevator relay will automatically release, allowing users to exit the elevator or use the elevator normally (depending on settings)
- Real-time inspection: Can view usage status and collect elevator button press data through management software
Gallery
| Fingerprint Capacity | 3000 |
| Power Supply | 12V DC 1A |
| Size | 242mm × 95mm × 60mm (L*D*H) |
| Net Weight | 0.8Kg |
