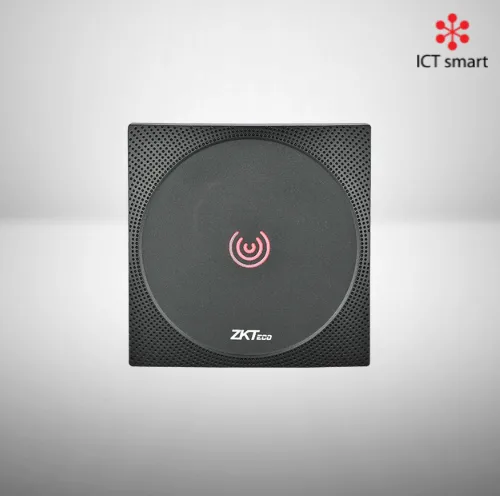

ZKTeco KR600 Series
Door Control Accessories
LINE Official Account
@ictsmart
ZKTeco KR600 Series is a proximity reader designed for high-speed access control and door entry management. Weather-resistant and easy to install for both indoor and outdoor applications.
Features
- Supported card types: Divided into 2 main models: KR600-E model supports RFID cards (125 kHz EM) and KR600-M model supports Smart Cards (13.56 MHz Mifare)
- Card reading distance: Fast reading (less than 300 milliseconds) maximum distance of 10 cm for EM cards and 5 cm for Mifare cards
- Signal transmission format: Connects to the controller via Wiegand port, with model E transmitting 26-bit signal and model M transmitting 34-bit signal
- Water and dust protection: IP65 standard protects against water spray and dust very well. Can be installed for outdoor use
- Design and materials: Housing made from durable ABS+PC plastic, compact size (approximately 75 × 116 × 16 mm)
- Alert system: Has 2-color LED light (red/green) and built-in Beeper sound
- Power consumption: Uses DC 6-14V voltage / maximum current 70mA
- Supported temperature range: Operates stably at temperatures from -20° C to +65° C
Gallery
| Power Supply | DC 6-14V / Max.70mA |
| Temperature | -20°C to 65°C (-10° to +70°C) |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Protection Standard |
KR600-E/M: IP65 KR601-E/M: IP65 KR602-E/M: IP64 |
